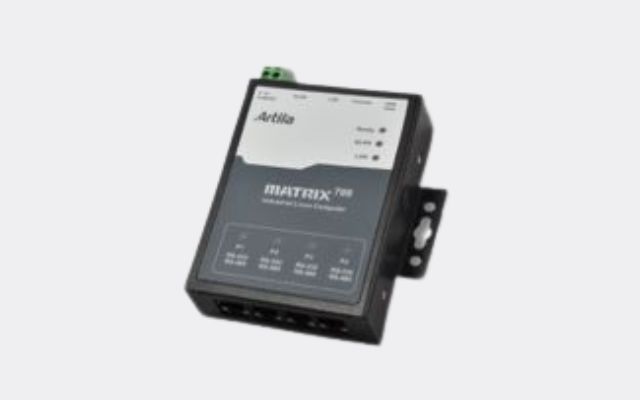

Linux-ready Cortex-A5 IIoT Gateway with 4x RS-485/232

Matrix-700

Key Features

• 536MHz Microchip Cortex-A5 CPU
• 512MB DDR2 SDRAM
• 16GB eMMC flash storage
• Linux kernel 5.15.x, Yocto file system
• 1x Gigabit Ethernet interface
• 1x 10/100Mbps Ethernet interface
• 4x RS-485/232 serial ports
• 2x USB 2.0 host ports
• 1x micro-SD socket

Technical Specifications

CPU / Memory / Storage

• CPU: Microchip Cortex-A5 @536MHz
• SDRAM: 512MB DDR2
• Storage: 16GB eMMC flash

Operating System

• Linux kernel 5.15.x
• Yocto file system
• Supports APT (Advanced Package Tool)
• Artila system backup/restore utility

Network Interface

• Ports: 2x
• 1x Gigabit Ethernet
• 1x 10/100Mbps Ethernet
• Connector: RJ45 with LED indicators

Serial Ports

• 4x RS-485/232 serial ports, software-selectable
• RS-485 signals: Data+, Data-
• RS-232 signals: TX, RX, RTS, CTS
• RS-485 supports automatic direction control
• Baud rate: up to 921.6Kbps
• Connector: RJ45

USB 2.0 Hosts

• Ports: 2x
• Supports 480Mbps high-speed mode
• Connector: Type A

SD Card Socket

• 1x micro-SD socket
• SD 2.0 compliant, supports SDHC

RTC (Real-Time Clock)

• Standalone RTC
• Watchdog timer included
• Backup power: on-board super capacitor

USB-to-Serial Console

• Connector: micro-USB
• Communication parameters: 115,200 baud, 8N1

RS-232 Console/Debug Port

• Signals: TX, RX
• Communication parameters: 115,200 baud, 8N1
• Connector: 4-pin wafer, internal to enclosure

Power Requirements

• Input range: 9-48VDC, with polarity protection
• Power consumption: 250mA @ 12VDC (typical)
• Connector: two-pin terminal block

General

• Buzzer: yes
• Dimensions(WxLxH): 78 x 108 x 24mm
• Weight: 350g
• Operating temperature: 0-70°C
• FCC / CE class A compliant
• Wall mount or DIN-rail mount

Ordering Information

Matrix-700

• Linux-ready Cortex-A5 IIoT Gateway

CB-PHDF9-050

• RS-232 Console Cable, 50cm
• Wafer Box 4P to DB9 Female

DK-35A

• DIN-rail mounting kit, 35mm

PWR-12V-1A

• Power adapter
• Input: 110~240VAC; Output: 12VDC, 1A
