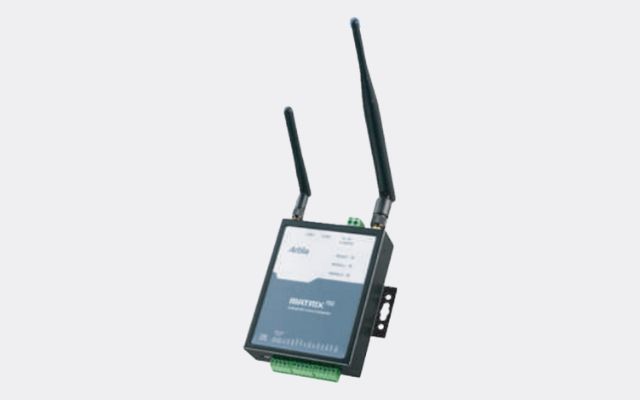

Linux-ready Cortex-A7 IIoT Gateway with miniPCIe Socket
Matrix-752
Key Features
-
•
800MHz NXP i.MX6ULL Cortex-A7 CPU
-
•
512MB DDR3 SDRAM (optional 1GB)
-
•
16GB eMMC flash storage
-
•
Linux kernel 5.10.x, Yocto or Ubuntu file system
-
•
2x 10/100Mbps Ethernet interfaces
-
•
1x RS-485/232, 1x RS-232, 1x CAN ports
-
•
1x miniPCIe socket with USB interface
-
•
2x isolated digital inputs, 2x relay outputs
-
•
1x micro-SD socket
Technical Specifications
CPU / Memory / Storage
-
•
CPU: NXP i.MX6ULL Cortex-A7 @800MHz
-
•
Memory: DDR3 512MB (optional 1GB)
-
•
Storage: eMMC 16GB
Operating System
-
•
Linux kernel: 5.10.x
-
•
Yocto file system (Matrix-752)
-
•
Ubuntu-core file system (Matrix-752U)
Network Interface
-
•
Ports: 2x
-
•
Speed: 10/100Mbps
-
•
Connector: RJ45 with LED indicators
USB OTG Port
-
•
Ports: 1x
-
•
Connector: micro-USB
-
•
Use case 1: USB-to-serial console
-
•
Use case 2: USB 2.0 host
Serial Port 1 (RS-485/232)
-
•
RS-485 or RS-232, software-selectable
-
•
RS-485 signals: Data+, Data-
-
•
RS-232 signals: TX, RX
-
•
Baud rate: up to 921.6Kbps
-
•
Connector: terminal block
Serial Port 2 (RS-232)
-
•
Signals: TX, RX
-
•
Baud rate: up to 921.6Kbps
-
•
Connector: terminal block
CAN Bus Port
-
•
Ports: 1x
-
•
CAN bus 2.0 A/B compliant
-
•
Speed: up to 1Mbps
-
•
Isolation: 2500Vrms
miniPCIe Expansion Socket
-
•
Sockets: 1x
-
•
Interface: USB 2.0, 480Mbps high speed
-
•
Supports full-size modules
-
•
On-board nano-SIM socket for 4G/LTE
Digital Inputs
-
•
Channels: 2x
-
•
Isolation: 5000Vrms photocoupler
-
•
High: 5-24VDC; Low: 0-1.5VDC
-
•
Polarity independent
Relay Outputs
-
•
Channels: 2x
-
•
Type: Solid state relay, normally open
-
•
Contact rating: 80VDC @ 1.5A
SD Card Socket
-
•
Sockets: 1x, micro-SD
-
•
SD 3.0 compliant, supports SDHC/SDXC
RTC (Real-Time Clock)
-
•
Standalone RTC
-
•
Watchdog timer included
-
•
Backup power: on-board super capacitor
RS-232 Console/Debug Port
-
•
Signals: TX, RX
-
•
Communication parameters: 115,200 baud, 8N1
-
•
Connector: 4-pin wafer, internal to enclosure
Power Requirements
-
•
Input range: 9-48VDC, with polarity protection
-
•
Power consumption: 250mA @ 12VDC (typical)
-
•
Connector: two-pin terminal block
General
-
•
Buzzer: yes
-
•
Dimensions (WxLxH): 89 x 112 x 30mm
-
•
Weight: 350g
-
•
Operating temperature: 0-70°C
-
•
CE/FCC Class A compliant
-
•
Wall mount or DIN-rail mount
Ordering Information
Matrix-752
-
•
Linux/Yocto-ready Cortex-A7 IIoT Gateway
Matrix-752U
-
•
Linux/Ubuntu-ready Cortex-A7 IIoT Gateway
CB-PHDF9-050
-
•
RS-232 Console Cable, 50cm
-
•
Wafer Box 4P to DB9 Female
DK-35A
-
•
DIN-rail mounting kit, 35mm
PWR-12V-1A
-
•
Power adapter
-
•
Input: 110~240VAC; Output: 12VDC, 1A
