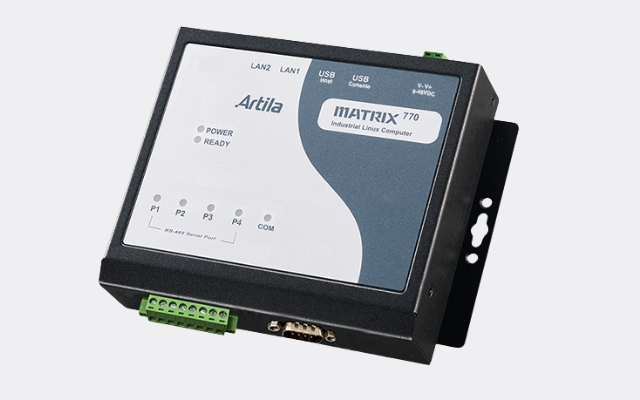

Linux-Ready Cortex-A9 IIoT Gateway with miniPCIe Socket and 4x RS-485
Matrix-770
Key Features
-
•
800MHz Cortex-A9 CPU
-
•
1GB DDR3 SDRAM (optional 2GB)
-
•
16GB eMMC flash storage
-
•
Ubuntu Linux, kernel 6.x.y
-
•
2x 10/100Mbps Ethernet interfaces
-
•
4x RS-485 and 1x RS-232 serial ports
-
•
1x miniPCIe socket with USB interface
-
•
2x USB 2.0 host ports
-
•
1x micro-SD socket
Technical Specifications
CPU / Memory / Storage
-
•
CPU: Cortex-A9 @800MHz
-
•
SDRAM: 1GB DDR3 (optional 2GB)
-
•
Storage: 16GB eMMC flash
Operating System
-
•
Linux kernel 6.x.y
-
•
Ubuntu-core file system
-
•
Supports APT (Advanced Package Tool)
-
•
Artila system backup/restore utility
Ethernet Interfaces
-
•
Ports: 2x
-
•
Speed: 10/100Mbps
-
•
Connector: RJ45 with LED indicator
RS-485 Serial Ports
-
•
Ports: 4x
-
•
Signals: Data+/Data-
-
•
Baud rate: upto 115,200 bps
-
•
Connector: terminal block
RS-232 Serial Port
-
•
Ports: 1x
-
•
Signals: Tx/Rx/RTS/CTS
-
•
Baud rate: upto 115,200 bps
-
•
Connector: DB9 female
miniPCIe Expansion Socket
-
•
No. of sockets: 1x
-
•
Interface: USB 2.0, 480Mbps high speed
-
•
Supports full size module
-
•
On-board nano-SIM socket for 4G/LTE
-
•
Use case: Wi-Fi, 4G/LTE
SD Card Socket
-
•
1x micro-SD socket
-
•
SD 3.0 compliant, supports SDHC/SDXC
RTC (Real Time Clock)
-
•
Standalone RTC
-
•
Backup 1: on-board supercapacitor
-
•
Backup 2: connector for external battery
USB 2.0 Hosts
-
•
Ports: 2x
-
•
Supports 480Mbps high speed mode
-
•
Connector: Type A
USB-to-Serial Console
-
•
Connector: micro-USB
-
•
Parameters: 115,200 baud, 8N1
RS-232 Console/Debug Port
-
•
Signals: Tx, Rx
-
•
Parameters: 115,200 baud, 8N1
-
•
Connector: 4-pin wafer, internal to enclosure
Status LEDs
-
•
Power ON: green
-
•
System ready: green
-
•
RS-485: green/yellow
-
•
RS-232: green/yellow
Power Requirements
-
•
Input range: 9-48VDC with polarity protection
-
•
Power consumption: 250mA@12VDC (typical)
-
•
Connector: two-pin terminal block
General
-
•
Buzzer: yes
-
•
Dimensions (WxLxH): 160 x 117 x 24mm
-
•
Weight: 550g
-
•
Operating temperature: 0-70°C
-
•
FCC / CE class A compliant
-
•
Wall mount or DIN-rail mount
Ordering Information
Matrix-770
-
•
Linux-ready Cortex-A9 IIoT Gateway
CB-PHDF9-050
-
•
RS-232 Console Cable, 50cm
-
•
Wafer Box 4P to DB9 Female
DK-35A
-
•
DIN-rail mounting kit, 35mm
PWR-12V-1A
-
•
Power adapter
-
•
Input: 110~240VAC; Output: 12VDC, 1A
