Artila Releases 32-bit Arduino-Based Programmable Industrial IoT Gateway for Energy Management Applications

Easy-using the Matrix-310 as a lightweight programmable edge gateway platform for cloud-based Industrial IoT Applications

Taipei, Taiwan, January 6 --- Artila recently announced a new 32-bit Arduino-based programmable IIoT platform, the Matrix-310, which incorporates high-performance hardware (ESP32) and easy-to-use software (Arduino IDE) into a feature-rich and robust industrial-grade box, making it an ideal data collector platform for IIoT application.

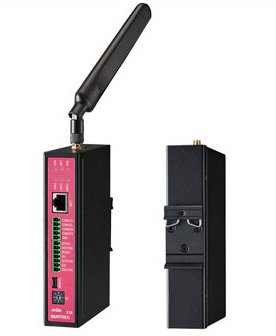

Matrix-310

Matrix-310 features Dual Serial ports and digital In/Out connectivity for transmission of acquired data to the cloud making it ideal for real-time monitoring and predictive maintenance also optimization and deployment of factory applications, such as industrial automation, environment monitoring, and smart city infrastructure.

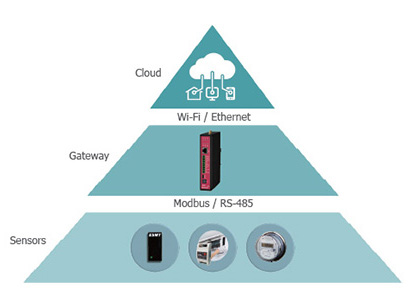

A typical use case of the Matrix-310 is shown below. It plays the role of a data collector or edge controller for Modbus/RTU sensor/device and Modbus/TCP sensor/device.

Matrix-310 application

The Matrix-310 Arduino-based IIoT platform provides the following hardware features out of the box:

  • 10/100Mb Ethernet Network Interface
  • IEEE-802.11 b/g/n Wireless Interface, with External Antenna
  • 1x RS-232 Interface and 1x RS-485 Interface
  • 1x micro-SD Card Socket
  • 2x Opto-Isolated Digital Inputs and 1x Relay Output
  • 1x 8-Position Rotary Switch (can be used for custom-defined input)
  • 9-40VDC Wide-Range Power Input
  • Easy for DIN-Rail Mounting or Wall Mounting

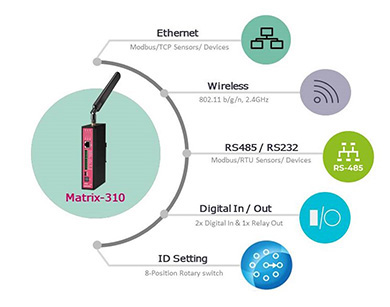

Matrix-310 features

There are versatile ways to develop application software on the ESP32 platform, Artila officially recommends and supports the Arduino IDE as the software development tool for the Matrix-310. A bunch of Matrix-310 example codes is available on GitHub. The application sketch can be easily uploaded to the Matrix-310 via a single off-the-shelf micro-USB cable.

Artila is a well-established IIOT hardware/software provider for industry/automation applications. Long-term product availability (beyond five years) and technical support are our second-to-none commitments to our customers.

For more information regarding Matrix-310 or other Artila products, please visit www.artila.com, or email to sales@artila.com.
